Power Team Hydraulics at WSD GmbH / RH605

Hydraulic cylinders

Power Team RH605 – Hollow-ram cylinder

Power Team RH – Series illustration
Series illustration · RH
Series illustration; the selected model may differ in appearance.
US catalog capacity class (US ton)60.0
Pulling force at 700 bar (t)25.1
Extension effective area (cm²)79.4
Retraction effective area (cm²)33.2
Force at 700 bar (t)55.8
Nominal catalogue class (t)54.0
Stroke (mm)127.0
Retracted height (mm)241.3
Extended height (mm)368.3
Outside diameter (mm)165.9
Piston rod Ø (mm)101.6
Centre hole Ø (mm)54.0
Weight (kg)33.1
Oil required for extension (cm³)1009.0
Oil required for retraction (cm³)423.0
ActionDouble-acting
SeriesRH
ReturnHydraulic return
Force directionPushing / lifting
Locking collarNo

Catalog drawing dimensions

Dimension letters refer to the drawing on the linked catalog page. Threads retain their standard designation.

DimensionCatalog value
F · Base to port25.4 mm
G · Cylinder top to port44.5 mm
O · Insert thread3 - 12

Manufacturer source: Power Team 2025 Metric Catalogue · PDF page 23

Additional data sources

Discuss your selection with WSD

Tell us about the application, existing components and equipment required. Together, we will check the specific configuration and availability. A catalogue association alone does not establish suitability for every application.

Enquire →

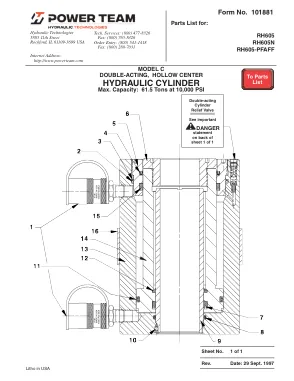

Manufacturer documents for this model

Accessories listed in the catalogue

2823029595326983270133439342513475534756RHA50

RH and RT: hollow-ram cylinders for pulling and pressing

A hollow-ram cylinder has a through-hole for a pulling rod or a similar component. Power Team’s RH and RT series in particular are intended for these applications.
