Power Team Hydraulics at WSD GmbH / PA50D

Hydraulic pumps

Power Team PA50D – Hydraulic pump

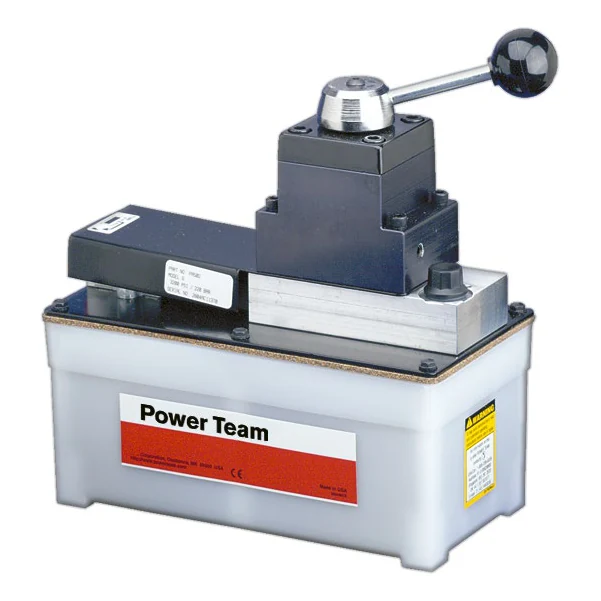

Power Team PA50 – Series illustration
Series illustration · PA50
Series illustration; the selected model may differ in appearance.
Length (mm)241
Width (mm)127
Height (mm)264
Reservoir volume (l)1.7
Pump stages1
Oil delivery at maximum pressure (l/min)0.45
Air supply pressure (bar)3–8
Air consumption (l/min)570
Connection3/8 NPTF
Weight (kg)8.4
Max. operating pressure (bar)220
Usable oil volume (l)1.6
DriveAir
ActionSingle- / double-acting
SeriesPA50

Catalog drawing dimensions

Dimension letters refer to the drawing on the linked catalog page. Threads retain their standard designation.

DimensionCatalog value
A264 mm
B149 mm
C111 mm
D241 mm
E127 mm

Oil delivery by pressure

barl/min
02.05
71.76
1701.41
2200.45

The required compressed-air supply and air flow must be available at the pump inlet.

Flow rates are taken from the rounded technical table; performance-curve values are typical and depend on operating conditions.

Manufacturer source: Power Team 2025 Metric Catalog · PDF page 63

Discuss your selection with WSD

Tell us about the application, existing components and equipment required. Together, we will check the specific configuration and availability. A catalogue association alone does not establish suitability for every application.
