Power Team Hydraulics at WSD GmbH / RSS101

Hydraulic cylinders

Power Team RSS101 – Hydraulic cylinder

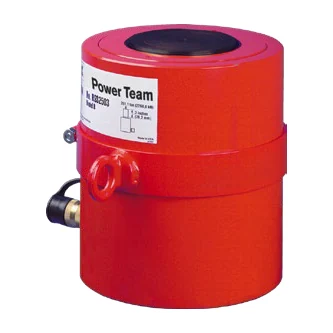

Power Team RSS – Series illustration
Series illustration · RSS
Series illustration; the selected model may differ in appearance.
US catalog capacity class (US ton)10.0
Extension effective area (cm²)14.4
Force at 700 bar (t)10.2
Nominal catalogue class (t)9.0
Stroke (mm)38.1
Retracted height (mm)88.9
Extended height (mm)127.0
Outside diameter (mm)69.9
Piston rod Ø (mm)38.1
Cylinder bore (mm)42.9
Weight (kg)2.7
Oil required for extension (cm³)56.0
ActionSingle-acting
SeriesRSS
ReturnSpring return
Force directionPushing / lifting
Locking collarNo

Catalog drawing dimensions

Dimension letters refer to the drawing on the linked catalog page. Threads retain their standard designation.

DimensionCatalog value
F · Base to port15.9 mm

Manufacturer source: Power Team 2025 Metric Catalogue · PDF page 20

Additional data sources

Discuss your selection with WSD

Tell us about the application, existing components and equipment required. Together, we will check the specific configuration and availability. A catalogue association alone does not establish suitability for every application.

Enquire →

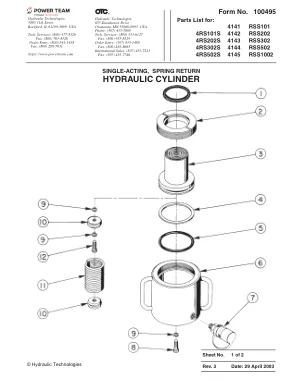

Manufacturer documents for this model

Accessories listed in the catalogue

350320

RLS and RSS: hydraulic cylinders for low installation heights

In confined working spaces, retracted height and clearance around the connection are often more important than a particularly long stroke. Power Team offers RLS low-profile cylinders and compact RSS short-stroke cylinders for these tasks.

Learn more →
