Power Team Hydraulics at WSD GmbH / P59F

Hydraulic pumps

Power Team P59F – Hydraulic pump

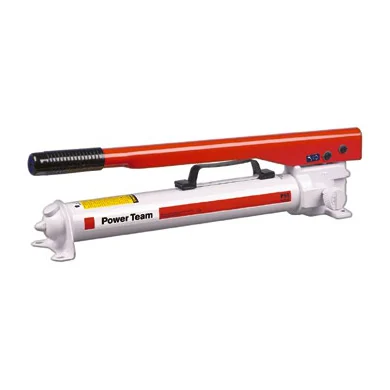

Power Team P – Series illustration
Series illustration · P
Series illustration; the selected model may differ in appearance.
Handle effort (kgf)55
Length (mm)590.6
Width (mm)152.4
Height (mm)88.9
Reservoir volume (l)0.902
Pump stages2
Oil per stroke, low pressure (cm³)9
Oil per stroke, high pressure (cm³)2.1
Low-pressure stage (bar)22
Connection3/8 NPTF
Weight (kg)6.4
Max. operating pressure (bar)700
Usable oil volume (l)0.738
DriveManual
ActionSingle-acting
SeriesP

Catalog drawing dimensions

Dimension letters refer to the drawing on the linked catalog page. Threads retain their standard designation.

DimensionCatalog value
A88.9 mm
B425.5 mm
C88.9 mm
D152.4 mm
E590.6 mm
F108 mm
G82.6 mm
H514.4 mm
L114.3 mm

Manufacturer source: Power Team 2025 Metric Catalog · PDF page 50

Discuss your selection with WSD

Tell us about the application, existing components and equipment required. Together, we will check the specific configuration and availability. A catalogue association alone does not establish suitability for every application.

Enquire →

Manufacturer documents for this model

Power Team hand pumps: portable and matched to the cylinder

Hand pumps are an option for mobile work and applications without an electric or pneumatic drive. Selection depends on pressure rating, usable oil quantity, delivery per stroke and valve configuration.
